Magnetic Pulser MP 09 - Strong Pulses Created (over 500mT) + Frequency Control
Thank you for considering e-Med instruments to be part of your wellness program. Our continued commitment lies in the complete satisfaction of each and every product we sell.

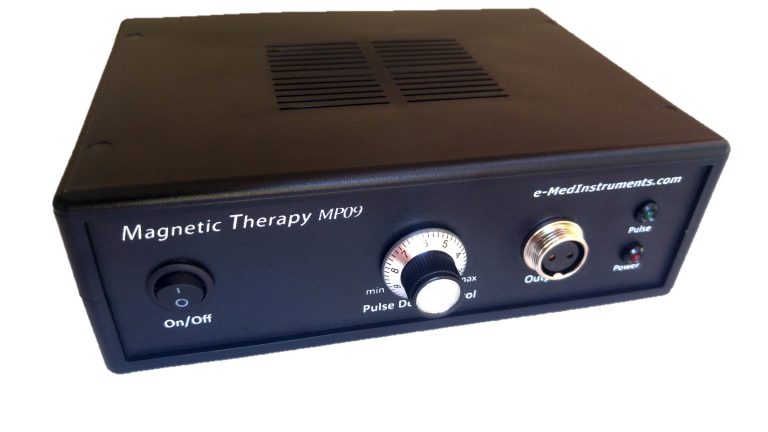

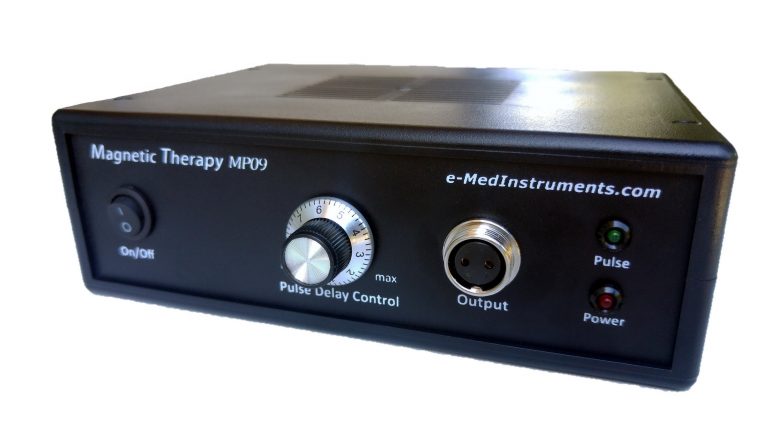

Magnetic Therapy MP 09 creates strong pulsed magnetic field. You can adjust the frequency by turning the Pulse Delay Control knob on the front panel. It is considered best if you start gradually increasing the length of the sessions, starting with 5 or less minutes of length with low pulse frequency adjustment and gradually increasing to half an hour per day or more. Best results are achieved when frequent sessions are performed for couple of weeks.
Although the PEMF therapies are generally considered safe, you should always consult with your physician. In some cases it is possible using Pulsed Magnetic Fields can mask pain.
I. Complete Unit Includes
- Magnetic Pulser Unit
- Magnetic Pulser Coil Paddle
- AC to 12v DC Power Adapter
- UK to EU Power Adapter
- User Manual
II. Technical Specifications
Your Magnetic Pulser outputs a time-variant pulsed DC magnetic field.
o Powered with 12V/6A 100V-240V Converter Power Adapter
o Magnetic Field Intensity: Greater than 500 mT at face of the Hand Paddle as tested with Gm3120Tesla Meter.
o Pulse Duration: ~2.7 mS (milliseconds).
o Maximum Pulses per Cycle: 1200 pulses (approx. 10 minutes)
III. How To Use Your Magnetic Pulser
- Insert the power plug from the AC-12v DC Power Adapter into the unit back cover port and plug the adapter into an electrical outlet.
- Insert the Hand Paddle cable to the device front panel aviation socket.
- Switch the ON/OFF button. The RED LED will light constantly to indicate the unit is powered on. The GREEN LED will start flashing each time a Pulsed Magnetic Field is being released from the Hand Paddle. A click will be heard as the pulse is released.
- Adjust the pulse frequency by turning the Pulse Delay Control knob on the front panel (start with low frequency and gradually increase if necessary)

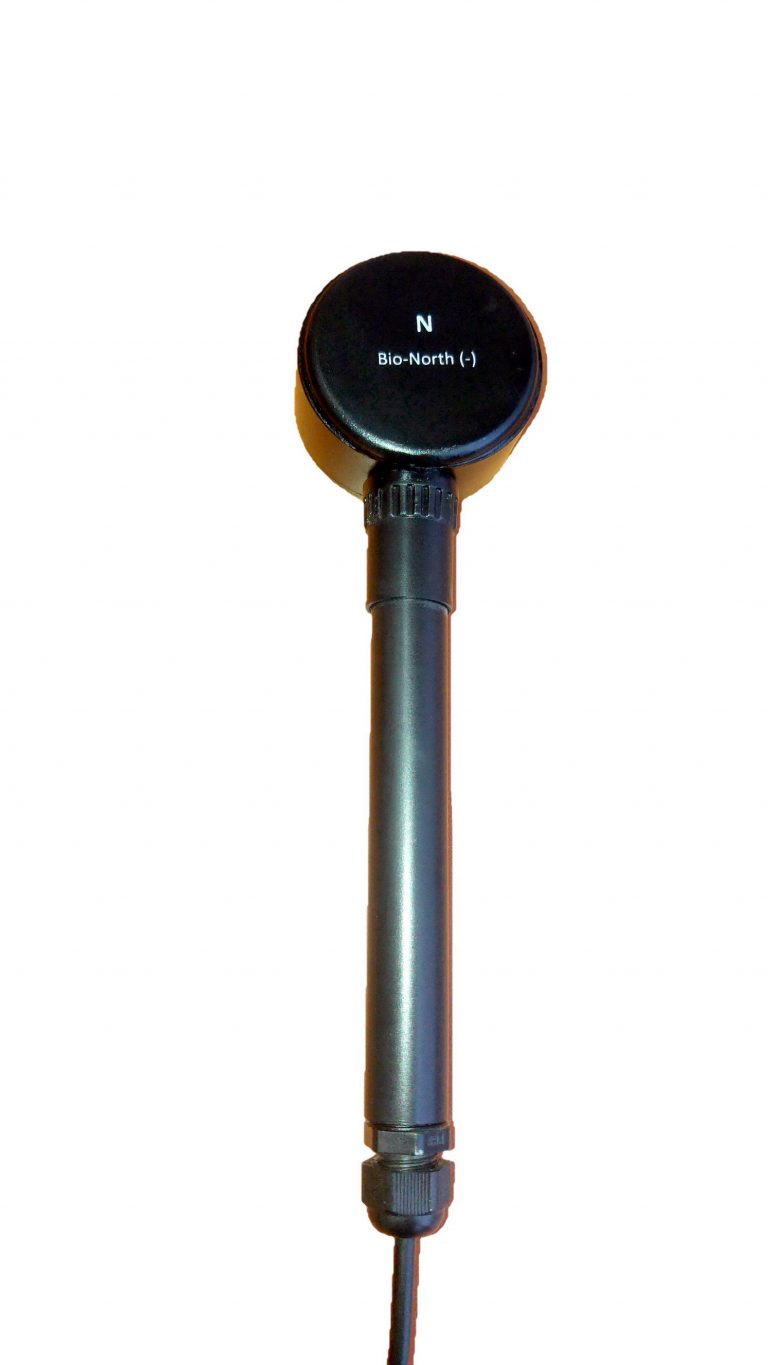

Note: We do not recommend using it with the highest possible frequency since there is a slight drop in the strength of the magnetic pulse emitted. The head of the Hand Paddle should be located on or as close to the body as possible. It may but it is not necessary to touch the body. For most applications, use the side of the Hand Paddle marked with Bio-North (-) against the body.
- When a cycle finishes (approx. 10-minutes), the unit will automatically turn off although the ON/OFF Switch will stay in ON position. To continue with another cycle reset the unit turning it OFF and ON again using the Switch button.
IMPORTANT: Ensure you give at least 15 minutes time delay before next cycle for the Hand Paddle coil to cool off.During the therapy, at the end of each cycle, the Hand Paddle will become warm to touch (this is absolutely normal and expected).You should avoid continuing with another cycle if the Hand Paddle is still warm to touch (10 to 15minutes should be enough to cool it down, depending on your room temperature)
For more details, please refer to the User Manual.
Download User Manual
