Knitted fabric GUARD - Protection from ELECTROsmog (EMR)
Protect your health with our protective shield against electromagnetic radiation (EMR). Very often, these shields have to be made of soft and sheer fabrics. Our project involves the production of knitted fabric with built-in metal thread for protection against EMR. We have called this shield knitted fabric “GUARD”. A utility model is registered in the Patent Office of the technology of production.The structure of textiles includes electrically conductive fibers. For them metal items, such as silver, copper, bronze, gold and others are used.
Why you should consider our solution and use it with confidence?
Fit for purpose:
Work in many areas of human activity such as modern warfare, medicine, security, transport, energy, ICT and other is usually under conditions of high EMR, which significantly exceed regulatory standards.
Fit for use:
There are several projects in the world of fabrics with embedded metal wires which are mainly woven fabrics. Our project involves the production of knitted fabric with built-in metal thread for protection against EMR. We have called this shield knitted fabric “GUARD”. A utility model is registered in the Patent Office of the technology of production.
Application area
- Protective work clothing and labor protection
- Protection Personal Protective Equipment – hats, headscarves, bodysuits, T-shirts, aprons and others
- Protective screens – curtains, shades, blinds, canopies, bed coverings, bedding, etc.
- Packaging materials
MEDICINE
- Protective equipment for cardiac patients, pregnant women and others
- Protective clothing for staff
- Protective screens and curtains in rooms for physical therapy, electromagnetic therapy, nuclear magnetic resonance and others
- Shielding of sensitive to EMW medical equipment
- Shielding of operating and intensive care
SECURITY, data protection, anti espionage, TEMPEST
- Protective work clothing of personnel
- Protection and shielding of office premises
- Protection of information systems and IT infrastructure
ENERGY
- Shielding and protection of buildings and facilities
- Protective clothing and equipment to protect workers in power engineering
Practice areas and zones at risk from electromagnetic radiation (EMR):
- induction heating of metals
- dielectric heating in the production of plastics, furniture and woodworking industry
- servicing TV transmitters, radio relay stations, radio transmission
- radio navigation, radio location (aviation, military, surveying, astronomy, meteorology, anti-hail, etc.)
- servicing mobile objects or systems, and satellite communications
- High frequency telephone centrals
- radio frequency generators
- aviation industry, shipbuilding industry and machines

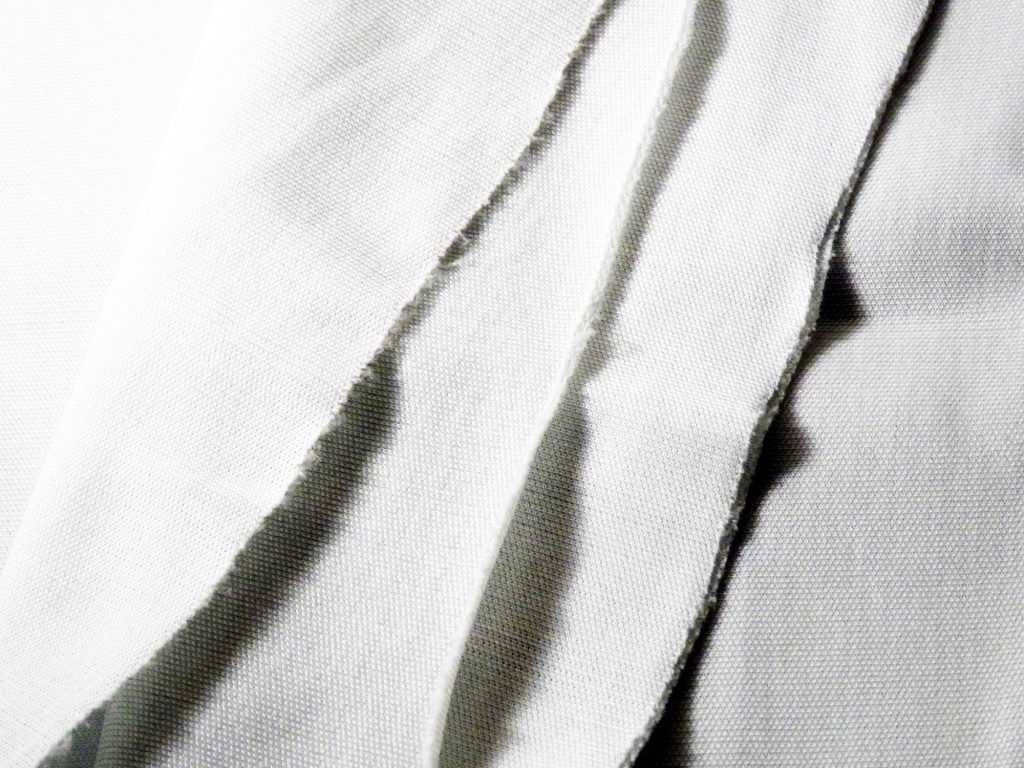

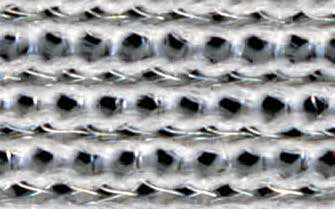

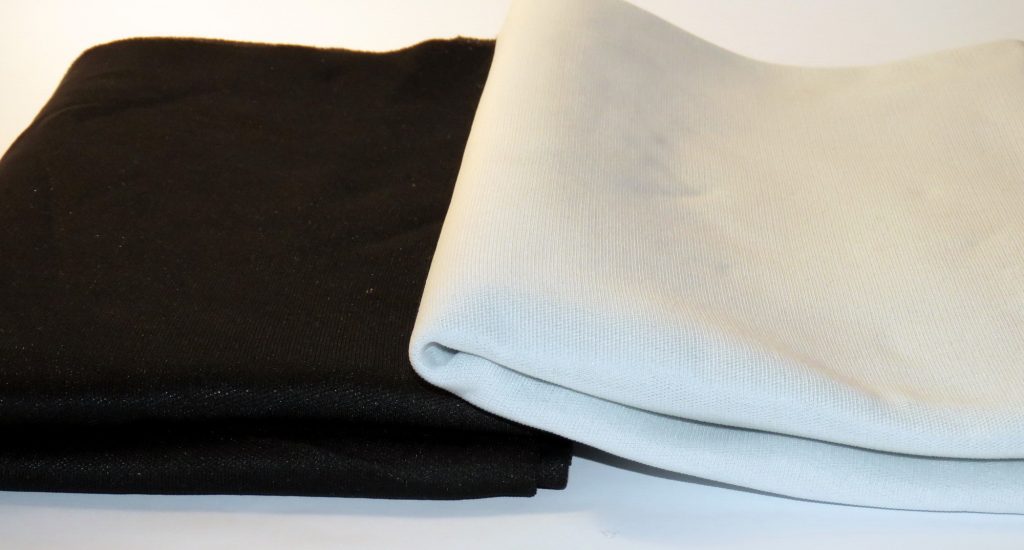

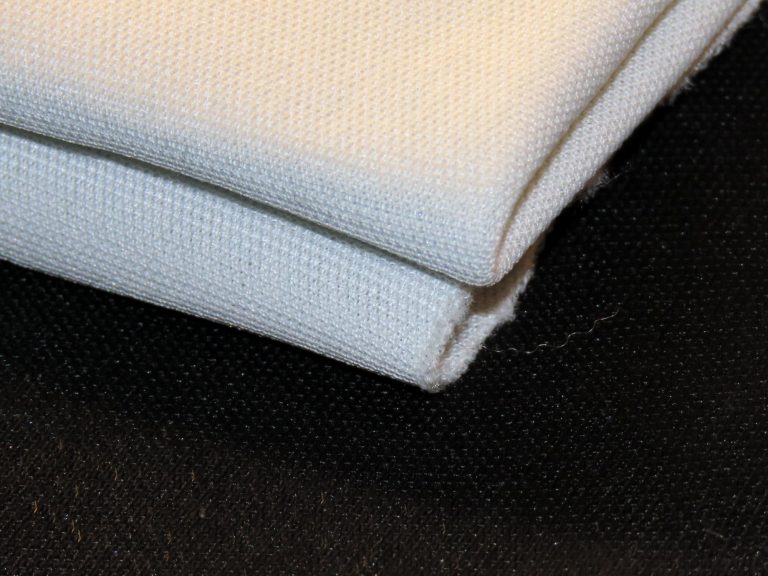

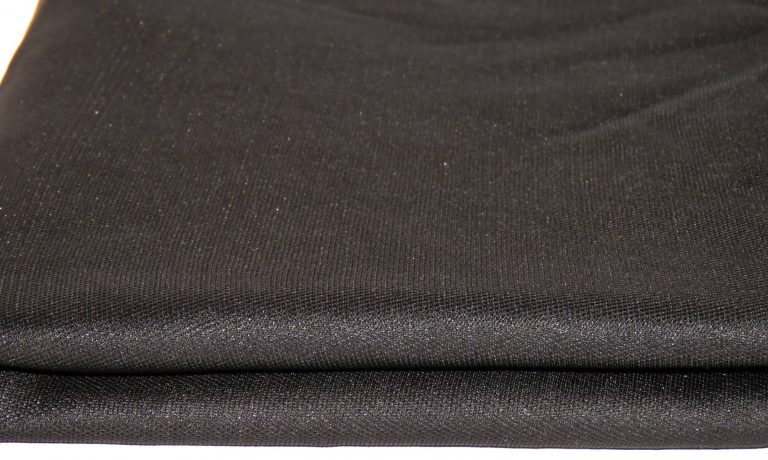

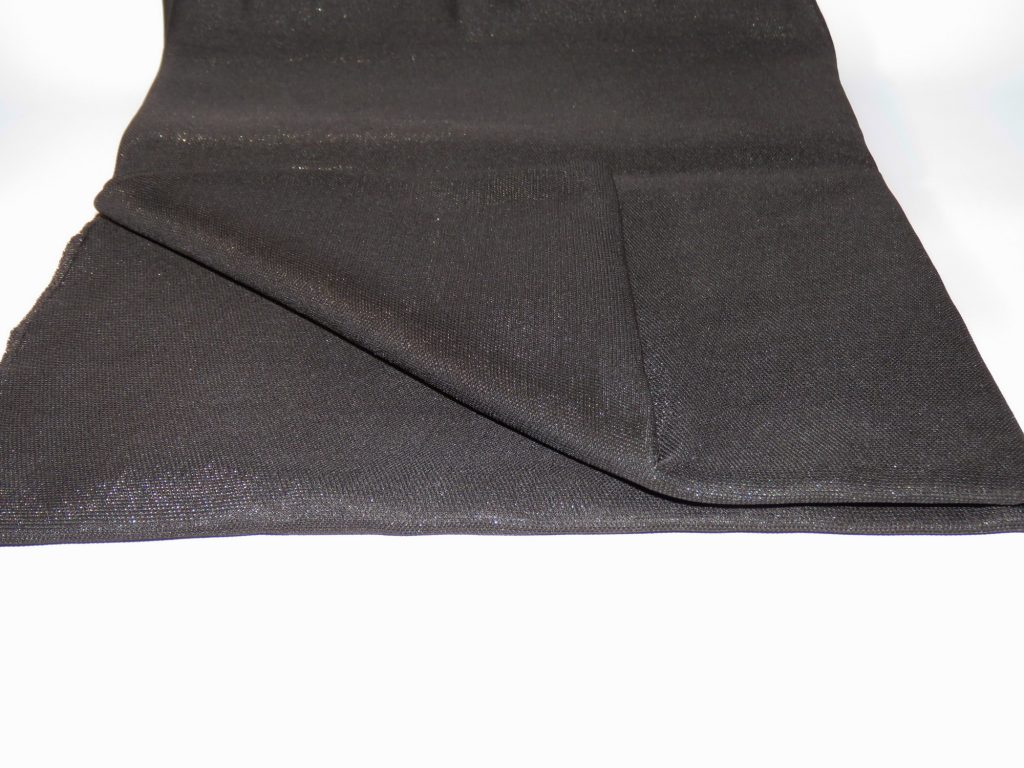

Knitted fabric GUARD pictures
Technical characteristics and structure:
- Width of the fabric: 1700 mm
- Material: 50% PES / 50% Cu&Sn
- Textile base – PES 83 dtex or material choice
- Metal thread – 0,050 мм Cu&Sn
- Color: white or optionally
- Weight: 120 – 150 g/m2
- Attenuation (protective properties):
- 50-80 dB (99,999%-99,999999%) at frequencies 30 MHz – 1000 MHz
- 30-60 dB (99,9%-99,9999%) at frequencies 1000 MHz – 18000 MHz
- 1 kg contains 8 m2 ±5% or 5 linear meters ±7%
For custom size please, contact us
